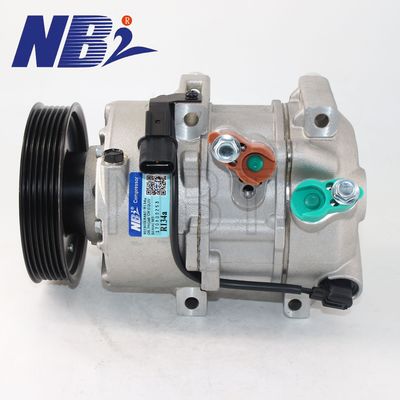

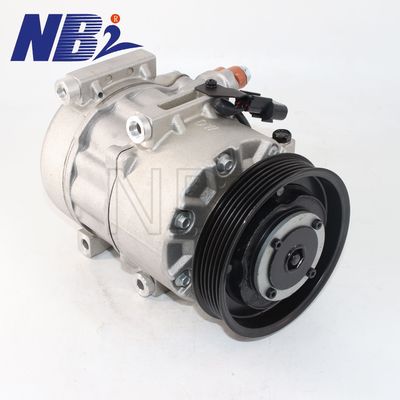

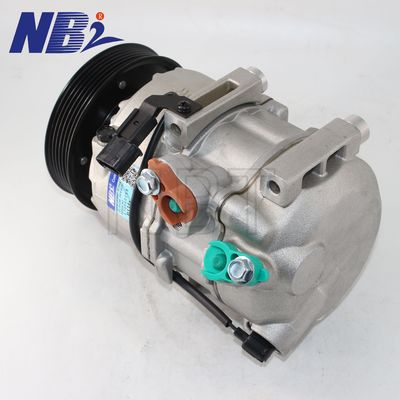

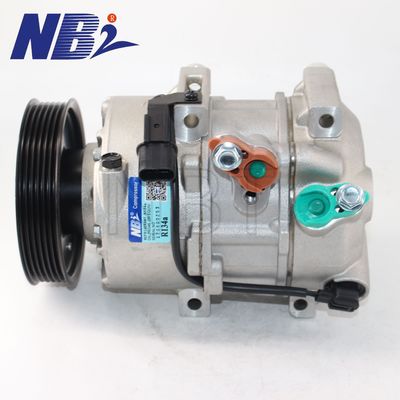

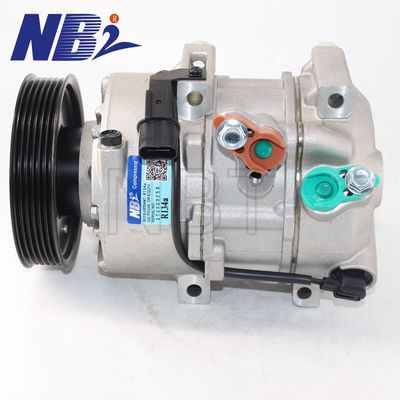

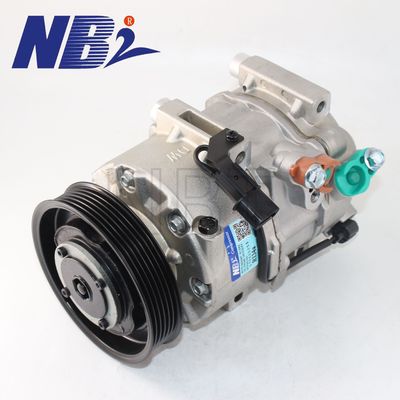

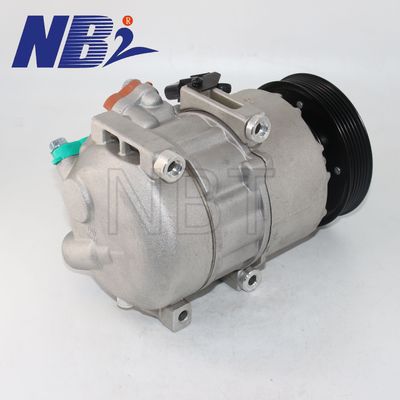

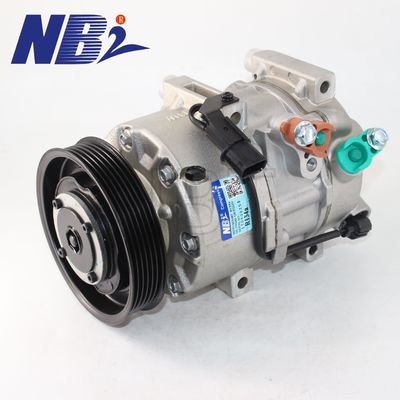

97701-2P400 977012P400 12V Car Auto AC Compressor for Kia Sorento 2.4 1F3BE-06400 Air Conditioning Compressors

97701-2P400 977012P400 12V Car Auto AC Compressor for Kia Sorento 2.4 1F3BE-06400 Air Conditioning Compressors

Products Description

Excellent After Sales Services

1.Trained and experienced sales team to solve any problems or questions for customers

2.24 Hours sale team services , we will be here all the time whenever you need

3.We are a team with you, helping you mean helping us

4.Your satisfactory is our mission

5.Warranty: One Year

About Compressors :

1)Rotary vane compressors consist of a rotor with three or four vanes and a carefully shaped
rotor housing. As the compressor shaft rotates, the vanes and housing form chambers.
The R134a is drawn through the suction port into these chambers, which become smaller as
the rotor turns. The discharge port is located at the point where the gas is fully compressed.
The vanes are sealed against the rotor housing by centrifugal force and lubricating oil. The
oil sump and oil pump are located on the discharge side, so that the high pressure forces oil
through the oil pump and then onto the base of the vanes keeping them sealed against the
rotor housing.
During idle an occasional vane noise from the compressor may be heard. This is due to the
time taken for lubricating oil to circulate through the A/C system.

2)Scroll type - Sanden
This compressor uses a unique design with two scrolls, one fixed and one is movable, both are inter-leaved.
The movable spiral is able to ORBIT or oscillate without actually fully rotating. The movable scroll is connected
to the input shaft via a concentric bearing.
As the movable spiral oscillates within the fixed spiral, a number of pockets are formed between the spiral. As
these pockets decrease in size the refrigerant is squeezed, the pressure increases and is discharged
through a reed valve at the discharge port in the rear section of the compressor.

3)Variable stroke - Harrison V5
The Delphi (Harrison) V5 compressor is a non-cycling variable displacement compressor.
The compressor varies displacement to control capacity to meet A/C system demand at all operating conditions. The compressor features a variable angle wobble plate in five (V5) cylinder axial piston design.
Displacement is controlled by a bellows actuated control valve located in the rear cylinder head. This control valve senses and responds to the system suction pressure or A/C system demand.
Through regulation of compressor crankcase pressure, the wobble plate angle, and therefore compressor displacement is variable.
In general, the compressor discharge pressure is much greater than the compressor crankcase. Which is greater than or equal to the compressor suction pressure.
At maximum displacement, compressor crankcase pressure is equal to the compressor suction pressure.
At reduced or minimum displacement, the compressor crankcase pressure is greater than the suction pressure

FAQ

Q1. How is quality ensured?
A: All our processes strictly adhere to ISO-9001 procedures. And we have a one year quality warranty B/L issue date.
If the product does not work property as described, and the problem is proven to beat our fault, we will provide exchange services for the same specific item.

Q2. Do you make customer' s auto AC parts?
A:Yes,you can send us samples and we can develop the new models especially for you.

Q3. What about delivery time?
A: lf we have stock of the item you need; we can send goods to you within 2 working days after deposit or 100% payment into our bank account. If we don' t have stock. The time to make each product is different generally, it takes 1 to 15working days.

Q4. How does to control your products?
A: 1.There is advanced equipment, professional and technical workers in the factory
2. Factory will have sample testing on quality before shipment
3.Our QC (QUALITY CONTROL) will check the quality of each product before shipment.

Q5. What about your packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
